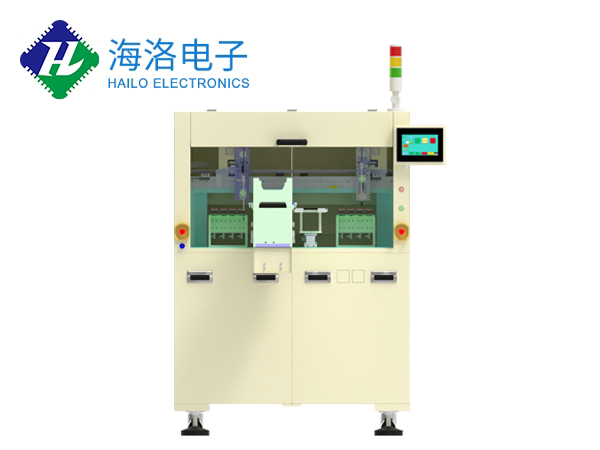

Brand IntroductionPH-T4000 is a high-speed burning equipment designed for tray packaging chips. It uses precision linear motor drive technology to remove chips from feeders, move them to testing stations, and package them into prototypes based on test results. Its highly reliable suction and discharge actions and reliable processing mechanism enable it to perform at an excellent level in batch burning
Equipment features:
1. Double headed 2 suction nozzles for efficient handling
2. Dual core control system, excellent computing speed
3. Precise magnetic levitation motor with minimal noise interference
4. Million level dust-free drag chain, high reliability connected to mobile execution components
5. Friendly human-machine interface, better presentation of production status information

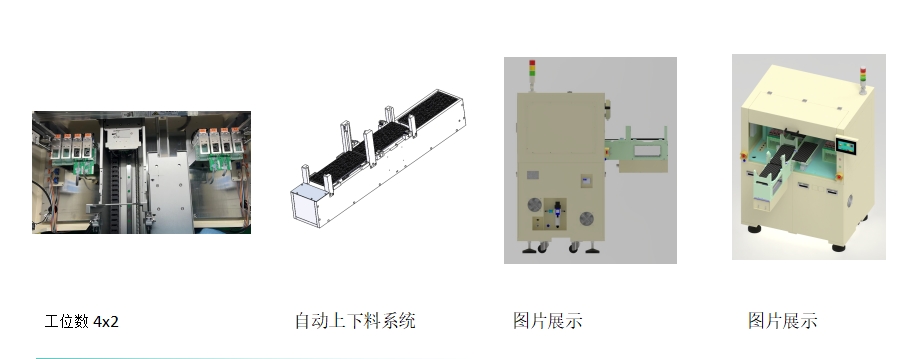

6. Ng automatic feeding
PH-T4000 detailed parameters
| model | PH-T4000 |
| Host size |
1000mm（W）×750mm（D）×1360mm（H） |
| weight |
Net Weight450kg |
| power | Power supply: single-phase, AC 220V~1KW Gas source: 0.6Mpa clean compressed air |
| Application chip size |
2*3mm，3*3mm，4*4mm，5*6mm |
| Burning station |
Eight workstations |
| CPH | 2800±200@ T.T. = 8sec.(8 workstations) |
| Jam Rate |
1/2000Eliminate any sticky residue |
| Time-Varying |
<15min |
| X-axis |
Travel distance 660mm; Speed 2m/s; Accuracy 0.002mm |
| Z-axis |
Travel 50mm; Speed 800mm/s; accuracy0.05mm.UPA≧3000pcs/h |
| Support encapsulation |
QFP、SOP、QFN、BGA, etc |
| Control mode |
PLC+HMI |
| |
Double headed 2 suction nozzles for efficient handling |
| NGproduct | Automatic exclusion (automatic plate placement) |
