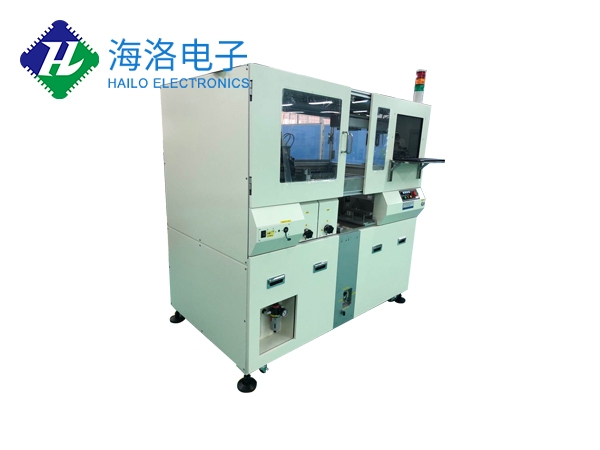

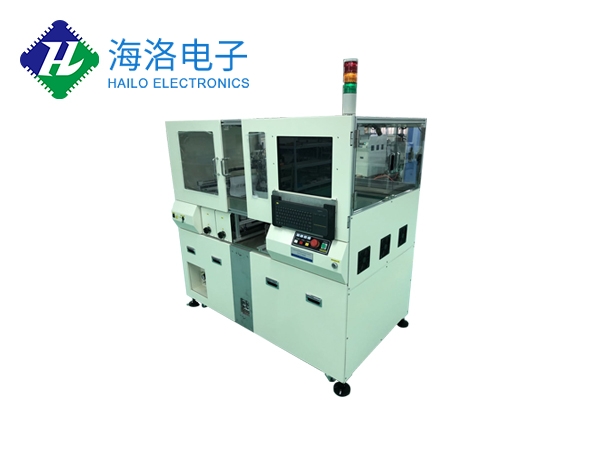

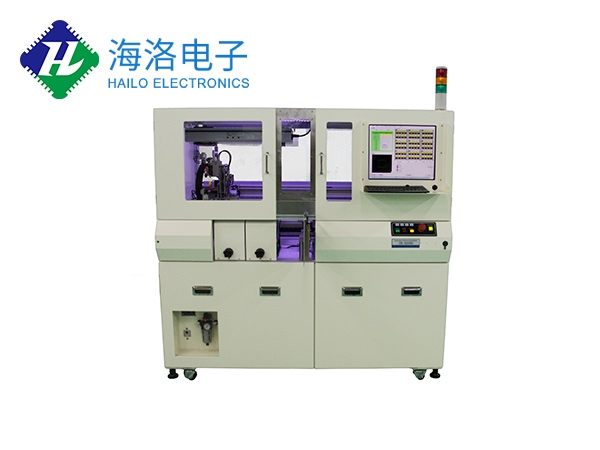

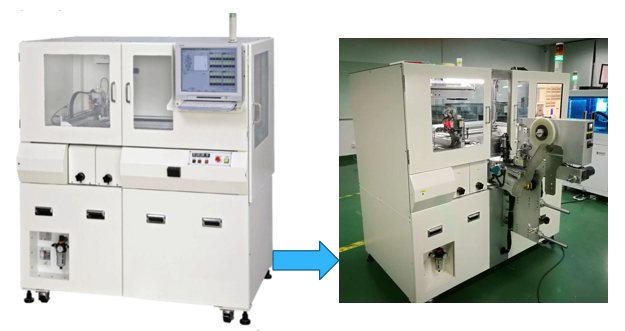

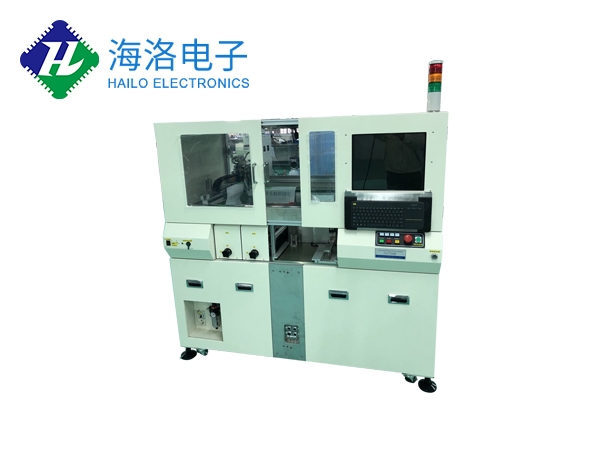

The PH-A2000 series automation is equipped with 10 PT100 programming burners. Each burner can complete the operation independently, and can automatically burn up to 80 chips (10 x 8 groups) at a time. This programming machine can not only handle large capacity flash storage chips, but also handle automotive electronics, medical equipment, drones, and high-end MCUs with ease!
1) USB online mode. Communicate with local PC through USB 2.0 port (high-speed) to achieve online control
2) RJ45 online mode. Connect to the local area network via Ethernet to achieve local or remote PC communication and online control
3) SD card offline mode. Equipped with a keyboard, LCD display, and removable storage (standard SD card), it can run independently offline, with convenient operation and easy expansion, making it the most suitable for large-scale production in factories. Engineering files (limited only by card capacity) are very easy to create (can be created and copied to SD cards without being online)
Nor Flash/Nand,flash,EMMC,EEPROM,EPROM,Micro-controller,CPLD,CMOSPLD,FPGA,Anti-fuseAnd customized chips for other customers。

The embedded high-speed FPGA has a bandwidth of up to 1.6Gb/sec and supports programming at the maximum speed allowed by the IC

A wider voltage range supports devices with various processes ranging from 1.2V to 13.0V for VCC/VCP/VPP

Advanced and precise pin driving technology can provide IC original factory standard high-speed, stable, and accurate signals, with faster programming and higher yield

The chip security guarantee mechanism has a built-in precision voltage self calibration circuit to ensure that the voltage is within the preset accuracy at all times

The self diagnostic function can diagnose hardware faults at any time to ensure that the machine is in good condition; Automatic before operation

Detecting chip misconnection, reverse insertion, and poor pin contact; Check the chip ID code before operation

The programmer has comprehensive overvoltage/overcurrent and ESD protection functions to prevent damage to the programmer/programmer/programmer

Green and environmentally friendly products are truly green and environmentally friendly (power efficiency>90%) energy-saving programming devices that do not require fans

The setting operation is extremely simple. After connecting USB/RJ45/SD card, select the programming function (Program, Verify, Auto, etc.) to start

Friendly and powerful software features simplify operations, avoid errors, and improve efficiency

1) Engineering (Project). Save various operations and settings related to the target device by the user, including device model settings, loading of burn files, configuration bit settings, batch commands, etc., in the engineering file. Each time it runs, it enters the write operation step by step, effectively reducing the probability of misoperation

2) Batch processing (Auto) command. Allow users to freely organize commonly used command sequences such as erase, empty, program, verify, and encrypt into a single command that can be completed in one step

3) Mass production mode. Detecting the status of the socket, once the chip is placed and automatically started, there is no need for manual buttons. Dynamic buffer. Each chip can burn different data, and the software automatically completes data changes according to user requirements, including standard and customized serial number generators (such as MAC addresses)

4) Log files. Provide convenience for quality tracking

5) Intellectual property protection function. SD card encryption, engineering file permission management and encryption, production limit, remote control

6) File format. Supports almost all known file formats and has automatic file format recognition function

7) Real time status display. Very intuitive and real-time display and analysis of programming status and production statistics

8) Customized algorithm. Accept customized special functions and algorithm software from users

9) File image management. Super powerful image management, including ECC, bad block handling, etc
