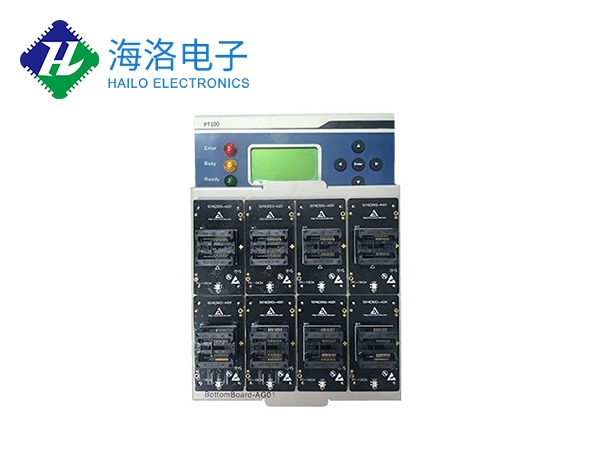

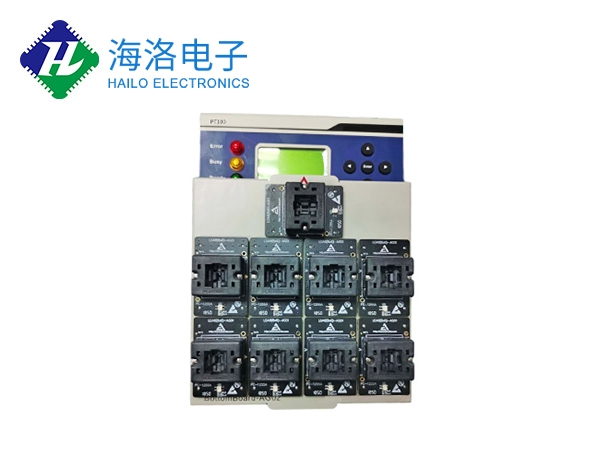

Product Introduction:

High performance

The AP8000 is equipped with the most advanced programming technology in the industry, featuring the fastest programming speed and precise pin driver circuits

Achieve the highest programming quality and maximize your productivity

Basic characteristics

Three working modes

1) USB online mode. Communicate with local PC through USB 2.0 port (high-speed) to achieve online control

2) RJ45 online mode. Connect to the local area network via Ethernet to achieve local or remote PC communication and online control

3) SD card offline mode. Comes with a built-in keyboard, LCD display, and removable storage (standard SD card), allowing for offline independent use

Stand up operation, easy to operate, easy to expand, most suitable for large-scale production in factory sites. Engineering documents (quantity only subject to)

The card capacity limit is very convenient to create (it can be created and copied to an SD card without being online)

The IC supports a wide range of applications: Nor Flash/NAND Flash, EMMC, EEPROM, EPROM, Micro controller, CPLD, CMOS PLD, FPGA, Anti fuse, and other customized chips for customers

Embedded high-speed: FPGA bandwidth can exceed 1.6Gb/sec at the fastest, supporting programming at the maximum speed allowed by the IC

Wider voltage range: Supports devices with various processes ranging from 1.2V to 13.0V for VCC/VCP/VPP

Advanced and precise pin driving technology can provide IC original factory standard high-speed, stable, and accurate signals, with faster programming and higher yield

Chip security guarantee mechanism: Built in precision voltage self calibration circuit to ensure that the voltage is within the preset accuracy at all times; The self diagnostic function can diagnose hardware faults at any time to ensure that the machine is in good condition; Automatically detect chip misconnection, reverse insertion, and poor pin contact before operation; Check the chip ID code before operation

Programmer protection: Comprehensive overvoltage, overcurrent, and ESD protection functions to prevent damage to the programmer/programmer/writer

Green and environmentally friendly product: a truly green and environmentally friendly (power efficiency>90%) energy-saving programming device that does not require a fan

The setup process is extremely simple: simply select the USB/RJ45/SD card connection and select the programming functions (Program, Verify, Auto, etc.) to start

Friendly and powerful software features simplify operations, avoid errors, and improve efficiency

1) Project: Save various user operations and settings related to object devices, including device model settings, input of burn files, configuration bit settings, batch commands, etc., in the project file. Enter the write operation step by step each time it runs, effectively reducing the probability of misoperation

2) Batch processing (Auto) command: allows users to freely organize commonly used command sequences such as erase, empty, program, verify, encrypt, etc. into a single command that can be completed in one step

3) Mass production mode: Check the status of the socket. Once the chip is placed and automatically started, there is no need for manual buttons. Dynamic buffer. Each chip can burn different data, and the software automatically completes data changes according to user requirements, including standard and customized serial number generators (such as MAC addresses)

4) Log files: provide convenience for quality tracking

5) Intellectual property protection features: SD card encryption, engineering file permission management and encryption, production limit, remote control

6) File format: Supports almost all known file formats and has automatic file format recognition function

7) Real time status display: very intuitive and real-time display and analysis of programming status and production statistics

8) Customized algorithm: Accepting user specific functions and algorithm software customization

9) File image management: Powerful image image management, including ECC, bad block handling, etc

Specifications and standard components:

The device supports FLASH devices:

Support devices produced by all mainstream semiconductor manufacturers, including: Atmel Hynix Macronix Micron Samsung Spansion Toshiba ... and many more!

Including:

NAND NOR MoviNAND iNAND eMMC eSD GBNAND SD MMC OneNAND ... and many more!

NAND Bad Block Management:

The technique of skipping bad blocks

Other NAND Flash bad block management methods recognized by chip manufacturers

Microcontroller:

Atmel Cypress Freescale Infineon Microchip NXP Renesas Samsung ST Silicon Labs TI Toshiba... and many more!

Supports all mainstream packaging:

TSOP CSP SOIC SSOP BGA FBGA uBGA EBGA TFBGA QFP TQFP PLCC PoP ... and many more!

Common programming function options:

Program Read Verify Blank Check Illegal Bit Check Erase Secure PinContinuity Protec/UnProtect Autosense

Specification communication port

RJ45 port and USB port

Electrical requirements

Working voltage: 110 to 240 VAC

Power: 3 watts

Frequency range: 50 to 60 Hz

Physical specifications

Width: 16.0cm in length: 22.6cm high: 6.9cm weight: 2kg

Environmental requirements

Ordinary office environment/power supply

Temperature

Working temperature: 0°C to +50°C

Transportation temperature:- 4°C to +70°C

Storage temperature: 0°C to +70°C

Humidity

Working humidity: up to 70%, no water condensation

Storage humidity: up to 80%, no water condensation

Service

One year warranty for the entire machine, free lifetime software upgrades

Windows computer requirements:

Operating System: Windows 2000, XP, Or above

Hard disk capacity: minimum 2 GB plus storage capacity for device data

SD card slot (for task cards, optional configuration)

Network interface

USB interface

CD ROM driver

Serial port or USB mouse

Standard components:

1. One AP8000 host base

2. One power cord

3. One USB 2.0 cable

4. One Ethernet cable

5. One driver CD

6. One user manual

7. One warranty card

8. One disclaimer
