Hailuo Electronics recently announced the latest iteration of its programming software and unveiled a series of new compatible chip models. In this update, the 8-bit microcontroller SH79F9461A launched by SinoWealth has been supported by the PT100 universal programmer for Anke programming chips

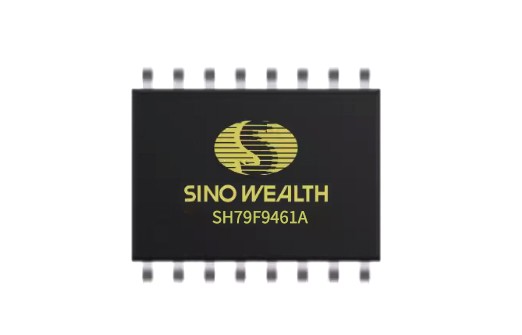

SH79F9461A is a high-speed and high-efficiency 8051 compatible microcontroller. At the same oscillation frequency, it has the superior feature of running faster compared to traditional 8051 chips
SH79F9461A retains most of the features of the standard 8051 chip. These features include built-in 256 byte RAM, 3-channel UART, and external interrupts INT0, INT1, INT2, INT3, and INT4. In addition, SH79F9461A also integrates external 4096 byte RAM. The microcontroller also includes a 64K byte Flash block suitable for program storage
SH79F9461A not only integrates standard communication modules such as EUART/TWI/SPI, but also modules such as dimmable LED driver, 12 bit ADC, PWM timer, etc
In addition, SH79F9461A also has a built-in 24 channel Touchkey module, CRC module, and digital logic configurable (LCM) module
In order to achieve high reliability and low power consumption, SH79F9461A has a built-in watchdog timer and low voltage reset function. In addition, SH79F9461A also offers two low-power power-saving modes< br> Features
8-bit microcontroller based on 8051 instruction pipeline structure Flash ROM: 64K bytes
RAM: Internal 256 bytes, External 4096 bytes
• Class EEPROM: Maximum 4096 bytes (code options optional)
• Working voltage:< br> - fOSC=24MHz, VDD=2.7V-5.5V
Oscillators (code options):< br> - Internal RC oscillator: 24M/16MHz (± 1%)/128K (± 10%)
42/46 bidirectional I/O pins (44 pins/48 pins)
I/O built-in pull-up resistor (30k Ω)
8 high current drive I/O ports
24 touch button inputs
Three 16 bit timers/counters T3 and T4, T5
1 16 bit PCA0 with 2 comparison/capture units
2-channel 12 bit PWM timer
SPI interface
TWI interface
• Interrupt source:
Timer3, 4, 5, PCA0
- External Interrupt 0-3
- External interrupt 4:8 input
- ADC, EUART，SPI， Touch button
- PWM, CRC，TWI，LPD，LED
• Built in digital logic configurable module (LCM)
• 3-channel enhanced UART
9-channel 12 bit analog-to-digital converter (ADC)
LED driver:
-8 COM/16 SEG with dimming LED driver
• Built in low voltage reset function (code option)
LVR voltage 1:4.1V
LVR voltage 2: 3.7V
LVR voltage 3: 3.1V
Built in CRC verification module, optional verification space size
13 level optional low voltage detection module (LPD)
• Support single line simulation and burning
• CPU machine cycle:
-1 oscillation cycle
Watchdog Timer (WDT)
Preheating counter
Low power operating mode:
- Idle mode
- Power off mode
Flash type
• Encapsulation:
TQFP48
- LQFP44


　　The PT million burner independently developed by Hailuo Electronics is a powerful burning solution that supports online and offline versions of one to one and one to eight configurations. It also provides dedicated burning solutions for eMMC and UFS, fully meeting the bare chip (offline) and on board burning needs of all SinoWealth series chip models. PT100 consists of three core components: host, motherboard, and adapter. As a leading universal programming platform in the industry, it not only meets the programming needs of various programmable chips in the market, but also serves as the core programming platform for the PH-A5800S professional chip programming equipment from Hello Electronics, efficiently supporting the execution of large-scale programming tasks.
　　This host supports both USB and NET connections, enabling the networking of multiple programmers and synchronous control of programming operations. The built-in safety protection circuit can instantly detect abnormal situations such as chip inversion or short circuit, and immediately power off to ensure the safety of the chip and programmer. The host integrates high-speed FPGA internally, significantly improving data transmission and processing speed. The back of the host is equipped with an SD card slot. Users only need to save the engineering files generated by the PC software to the SD card root directory and insert them into the card slot. They can select, load, and execute burning instructions through the buttons on the programmer without relying on the PC. This not only reduces the hardware configuration cost of the PC, but also facilitates the quick construction of the working environment.
　　The PT100 greatly enhances the expansion performance of the host through the combination design of the motherboard and adapter board. Currently, it can support products from all mainstream semiconductor manufacturers, including CHIPONE, Brands such as Eon, SIMCom, NORDIC, Cmsemicon, etc. The supported device types include NAND, NOR, MCU, CPLD, FPGA, EMMC, etc., and compatible with Intel Hex, Motorola S, Binary, POF and other file formats.

　　About Zhongying Electronics：SinoWealth was founded in 1994 and has been focusing on its own brand chip design business since 2002. It obtained ISO9001 certification in 2004 and completed ISO9001 in 2018. It is a chip design company specializing in MCU and lithium battery management chip fields. It is one of the first integrated circuit design enterprises recognized by the Ministry of Industry and Information Technology of China and the Shanghai Information Office. It is also a key integrated circuit design enterprise recognized by the Shanghai Enterprise Technology Center, high-tech enterprise, and national recognition.
​
　　About Hailuo Electronics：The company specializes in the research, development, production, and sales of chip foundry testing and programming, chip packaging conversion, automatic programming machines, manual programming machines, shielding boxes, copying machines, and other products; We have a 10000 level dust-free OEM burning workshop with 24-hour central air conditioning to maintain constant temperature and humidity. We have nearly a hundred fully automatic burning devices, with a monthly chip burning capacity of up to 800KK, and are equipped with professional AOI testing equipment to prevent quality abnormalities such as reverse, pin deformation, and missing marks that may occur after chip burning. We provide chip burning services to customers with the most advanced professional equipment to ensure quality.
